Installation
Hazardous areas Zone 1 / 2 (Gas) - Zone 21 / 22 (Dust)
ATEX
II 2G Ex db eb mb IIC T6...T5 Gb (Lens Type)
II 2D Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate No SGS25ATEX0003X
IECEx
Ex db eb mb IIC T6...T5 Gb (Lens Type)
Ex tb IIIC T80°C…T95°C Db (Lens Type)
Certificate No IECEx SGS 25 .0003X
Certificate & Standard
EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7
EN/IEC 60079-18; EN/IEC 60079-31.

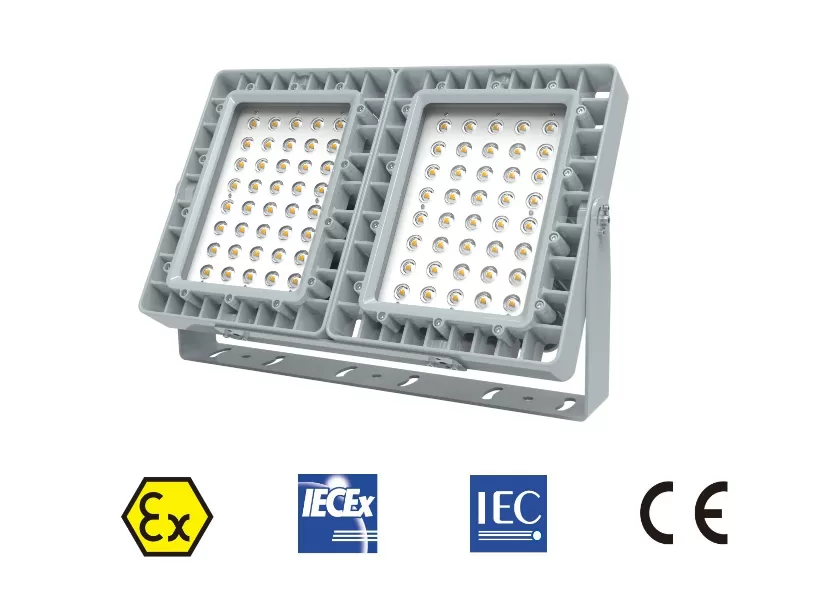

Heavy-Duty Construction: The EX05 series features a robust outer casing, ensuring durability and longevity even in harsh conditions.
Solid-State Design: With a solid-state design, these lights offer exceptional resistance to vibration and impact, guaranteeing reliable performance in demanding environments.
Safety Compliance: Each light is meticulously designed to meet stringent safety standards for hazardous environments, providing peace of mind for operators and workers.
Energy Efficiency: The LED technology used in the EX05 series ensures energy savings, reducing operational costs without compromising on illumination quality.
Versatile Applications: Whether it's in chemical plants, oil fields, or other hazardous settings, SAFER-Ex's EX05 series explosion-proof LED floodlights provide safe and reliable lighting solutions for a variety of applications.
| Rated Power | 25W | 50W | 75W | 100W | 150W | 200W | 300W | 400W | ||||||||||||||||||||||||||
| Light efficacy | 141lm | 141lm | 147lm | 147lm | 151lm | 151lm | 150lm | 150lm | ||||||||||||||||||||||||||
| Luminous Flux | 3525lm | 7050lm | 11025lm | 14700lm | 22650lm | 30200lm | 45000lm | 60000lm | ||||||||||||||||||||||||||
| Fixture Weight | 3.6kgs | 3.7kgs | 5.9kgs | 6.0kgs | 10.5kgs | 11.2kgs | 21.9kgs | 23.3kgs | ||||||||||||||||||||||||||
| Input Voltage | 12-24Vac,100-240Vac,12-36Vdc,140-250Vdc for option | |||||||||||||||||||||||||||||||||
| Surge Protection | 4KV line to line, 6KV line to earth | |||||||||||||||||||||||||||||||||
| Housing Material | Copper free Die-Casting aluminum with expoxy powder coating finished | |||||||||||||||||||||||||||||||||
| Lens Material | Tempered Glass / Polycarbonate | |||||||||||||||||||||||||||||||||
| Cable Entry | M20,M25,NPT 1/2",NPT3/4",G1/2,G3/4 | |||||||||||||||||||||||||||||||||
| Ingress Protection | IP66 | |||||||||||||||||||||||||||||||||
| Impact Rating | IK08 | |||||||||||||||||||||||||||||||||
| Ambient Temperature | -40 C ~ +65 C | |||||||||||||||||||||||||||||||||
| Temperature Classification | T6（40°C)/T5(55°C) | T6（40°C)/T5(55°C) | T6（55°C)/T5(65°C) | T6（35°C)/T5(50°C) | T6（35°C)/T5(50°C) | T6（40°C)/T5(55°C) | T6（40°C)/T5(55°C) | T6（40°C)/T5(55°C) | ||||||||||||||||||||||||||
| Intelligent Functions | Micorowave Motion Sensor/Daylight Sensor/Dimmable/Battery Backup/DALI/LoRa for option | |||||||||||||||||||||||||||||||||
| Warranty | 5-year standard warranty | |||||||||||||||||||||||||||||||||

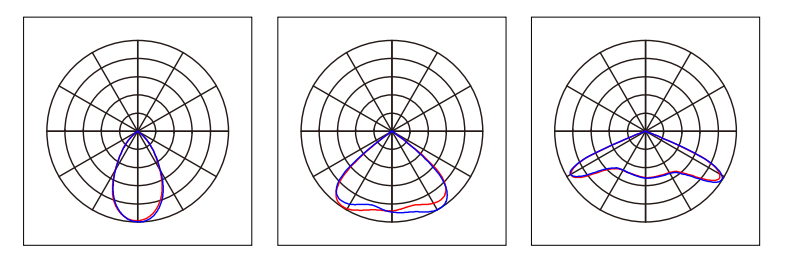

Distribution Curve

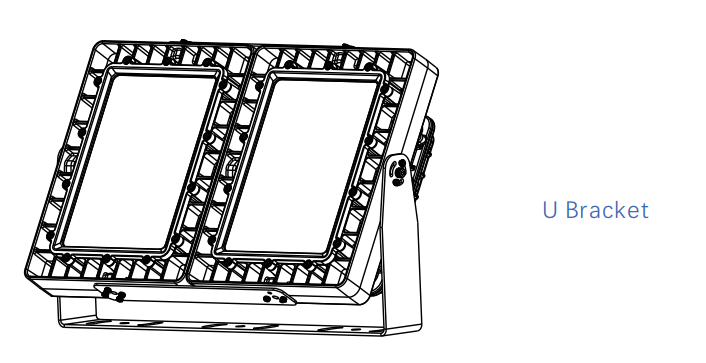

Mounting Options
 |  |  |  |  |
Wall Mounting | 25° Wall Mounting | Pendant Mounting | Trunnion Swivel Mounting | Ceiling Mounting |

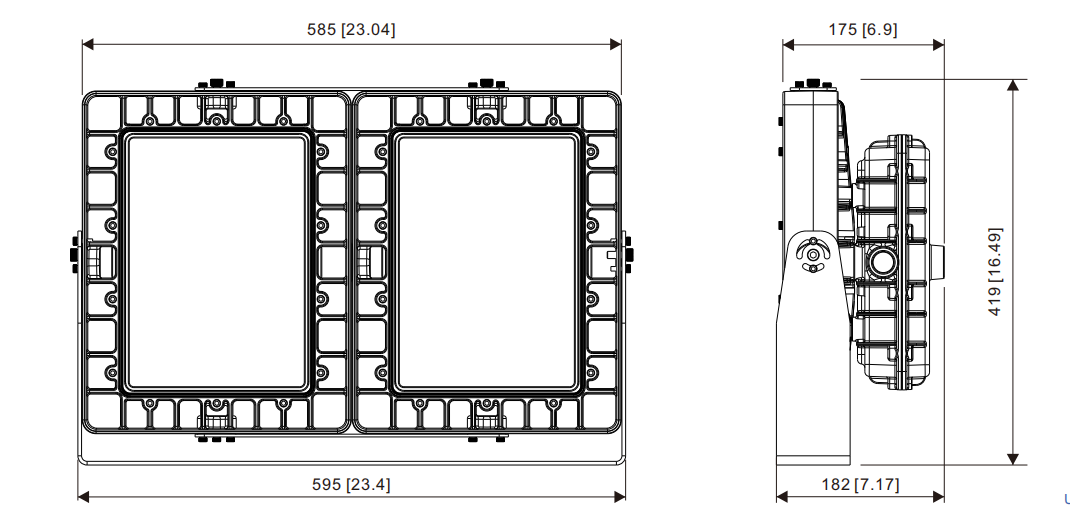

Dimension Diagram
Unit: mm [ '' ]
Ordering Information
List of SKU Naming: EX05 -200E -4K -140
| Series | Rated Power | Additional Function Input Voltage | Input Voltage | CCT | Beam Angle | Cable Entries | |||||||||||||||||||||||||||||
| EX05 | ‐25 = 25W | Empty = No Additional Function | L = 12-24Vac | ‐3K = 3000K | - 60 = 60° | N3/4 = NPT3/4 | |||||||||||||||||||||||||||||
| ‐50 = 50W | -MS = Microwave Motion Sensor | E = 100-240Vac | ‐4K = 4000K | - 90 = 90° | G3/4 = G3/4 | ||||||||||||||||||||||||||||||
| ‐75 = 75W | -DS=Daylight Sensor | DCL = 12-36Vdc | ‐5K = 5000K | - 140 = 140° | N1/2 = NPT1/2 | ||||||||||||||||||||||||||||||
| ‐100 = 100W | -DM=Dimmable | DCH= 140-250Vdc | ‐6K = 6000K | G1/2 = G1/2 | |||||||||||||||||||||||||||||||
| ‐150 = 150W | -DL=DALI | M25 = M25 | |||||||||||||||||||||||||||||||||
| ‐200 = 200W | - LR = LoRa | M20 = M20 | |||||||||||||||||||||||||||||||||
| - GS = GPS | |||||||||||||||||||||||||||||||||||
