Hazardous Location Led Stroble/Signal Light EX02 Series 50W

Installation

Hazardous areas Zone 1 / 2 (Gas) - Zone 21 / 22 (Dust)

UL

Class I Division 1 Group C, D

Class I Division 2 Group A, B, C, D

Class II Division 1 Group E, F, G

Class II Division 2 Group F, G

Class III Division 1 & 2

ATEX

image.png II 2G Ex db eb mb IIC T6...T5 Gb

image.png II 2D Ex tb IIIC T80°C…T95°C Db

Certificate No SGS25ATEX0007X

IECEx

Ex db eb mb IIC T6...T5 Gb

Ex tb IIIC T80°C…T95°C Db

Certificate No IECEx SGS 25.0004X

Certificate & Standard

USA: UL 1598, UL 8750, UL 844

Canada:C22.2#250, CSA C22.2#137

EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7

EN/IEC 60079-18; EN/IEC 60079-31

Product Highlight
  1. Explosion-Proof Design: The EX02 series strobe/signal lights from SAFER-Ex are specifically engineered to operate safely in hazardous environments, providing reliable signaling without the risk of ignition.

  2. Energy Efficiency: These lights are designed with energy efficiency in mind, ensuring optimal performance while minimizing power consumption. This not only reduces operational costs but also contributes to environmental sustainability.

  3. Superior Signaling: With their high-quality light sources, the EX02 series offers superior signaling capabilities, ensuring clear and visible signals even in challenging conditions. This enhances safety and facilitates efficient communication in industrial settings.

  4. Application Flexibility: The EX02 series provides flexibility in applications with six available colors of light sources: White, Red, Green, Blue, Yellow, and Purple. This versatility allows users to customize signaling according to specific needs and requirements.

  5. Robust Construction: Built to withstand harsh environments, these strobe/signal lights feature a robust construction that ensures durability and longevity. This makes them ideal for use in demanding industrial settings such as chemical plants, oil refineries, and manufacturing facilities.


Techinical


Rated Power15W25W50W
Light efficacy 153lm/W164lm/W161lm/W
Luminous Flux 2378lm4224lm7956lm
Fixture Weight3.2kgs/7.05lbs3.2kgs/7.05lbs3.4kgs/7.5lbs
Input Voltage12-24Vac,100-240Vac,120-277Vac,120-347Vac,277-480Vac,12-36Vdc,140-250Vdc for option
Surge Protection4KV line to line, 6KV line to earth
Housing MaterialCopper free Die-Casting aluminum with expoxy powder coating finished
Cable EntryM20,M25,NPT 1/2",NPT3/4",G1/2,G3/4
Ingress ProtectionIP66
Impact Rating IK08
Ambient Temperature-40℃ ~+70℃
Intelligent FunctionsMicrowave Motion Sensor / Daylight Sensor / Dimmable / 1Hz Flash / Battery Backup / DALI / LoRa / GPS for optionBackup/DALI/LoRa for option
Temperature ClassificationT6(65° C) /T5(70 °C)T6(65° C) /T5(70 °C)T6(50° C) /T5(65 °C)
Warranty5-year standard Warranty




Distribution Curve


Hazardous Location Led Strobel/Singal Light EX02 Series

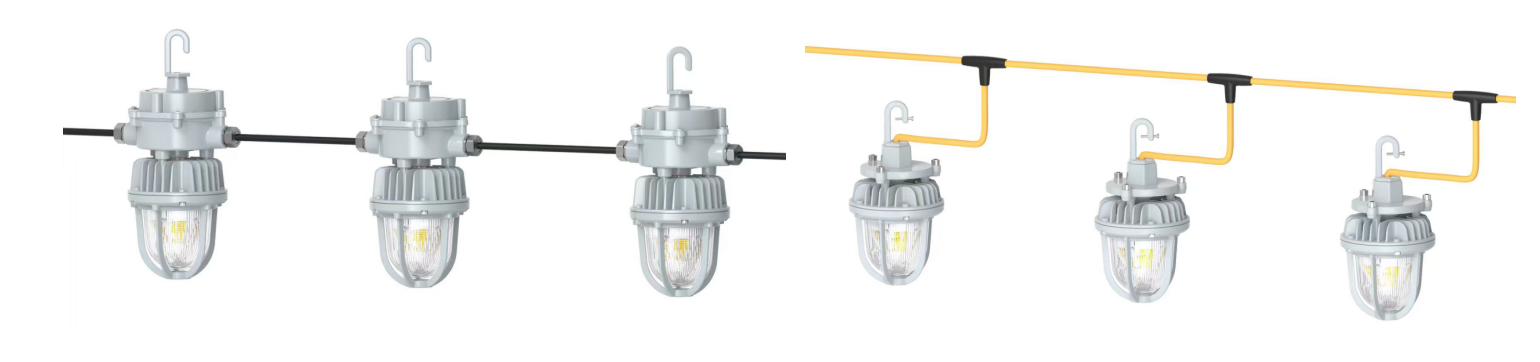

Mounting Options



Wall Mounting

25° Wall MountingCeiling MountingPendant MountingPendant Mounting

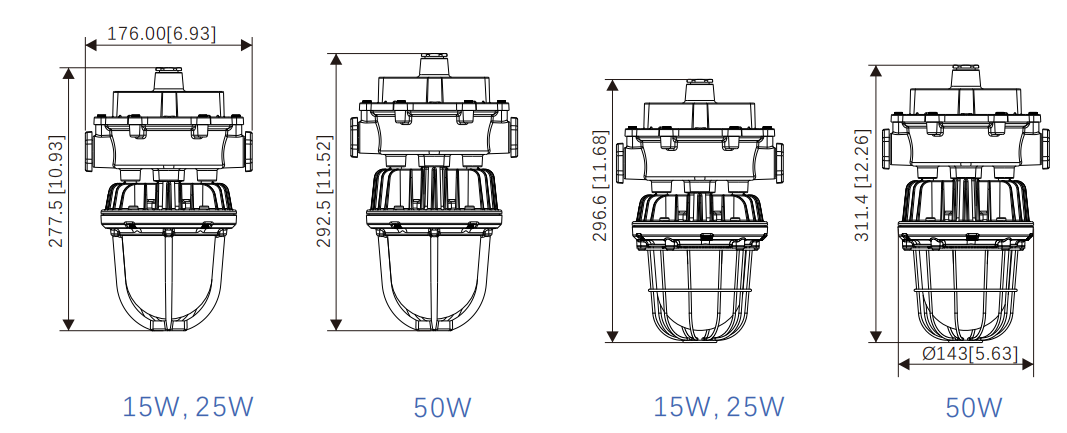

Dimension Diagram


Hazardous Location Led Strobel/Singal Light EX02 Series


Unit: mm [ '' ]

Ordering Information


List of SKU Naming: EX02B-25W-MS-E-R-220

SeriesRated PowerAdditional FunctionInput VoltageCCTBeam AngleCable Entries
EX02‐15  =  15WEmpty=No Additional FunctionL = 12-24VacW =  White‐220  = 220°N3/4 = NPT3/4

‐25  = 25W- MS = Microwave Motion SensorE = 100-240VacR  =   Red
G3/4 = G3/4

‐50  =  50W- DS = Daylight SensorU =  120-277VacG  = Green
N1/2 = NPT1/2


- DM = DimmableUH = 120-347VacB = Blue
G1/2 = G1/2


- DL = DALIH  =   277-480VacA = Amber
M25 = M25


- LR = LoRaDCL=12-36Vdc

M20 = M20


 - FS = FlashDCH=140-250Vdc




- GS = GPS
